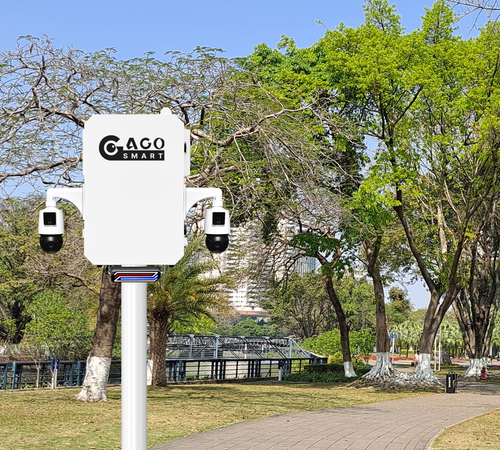

UPS Power Enclosures DD4

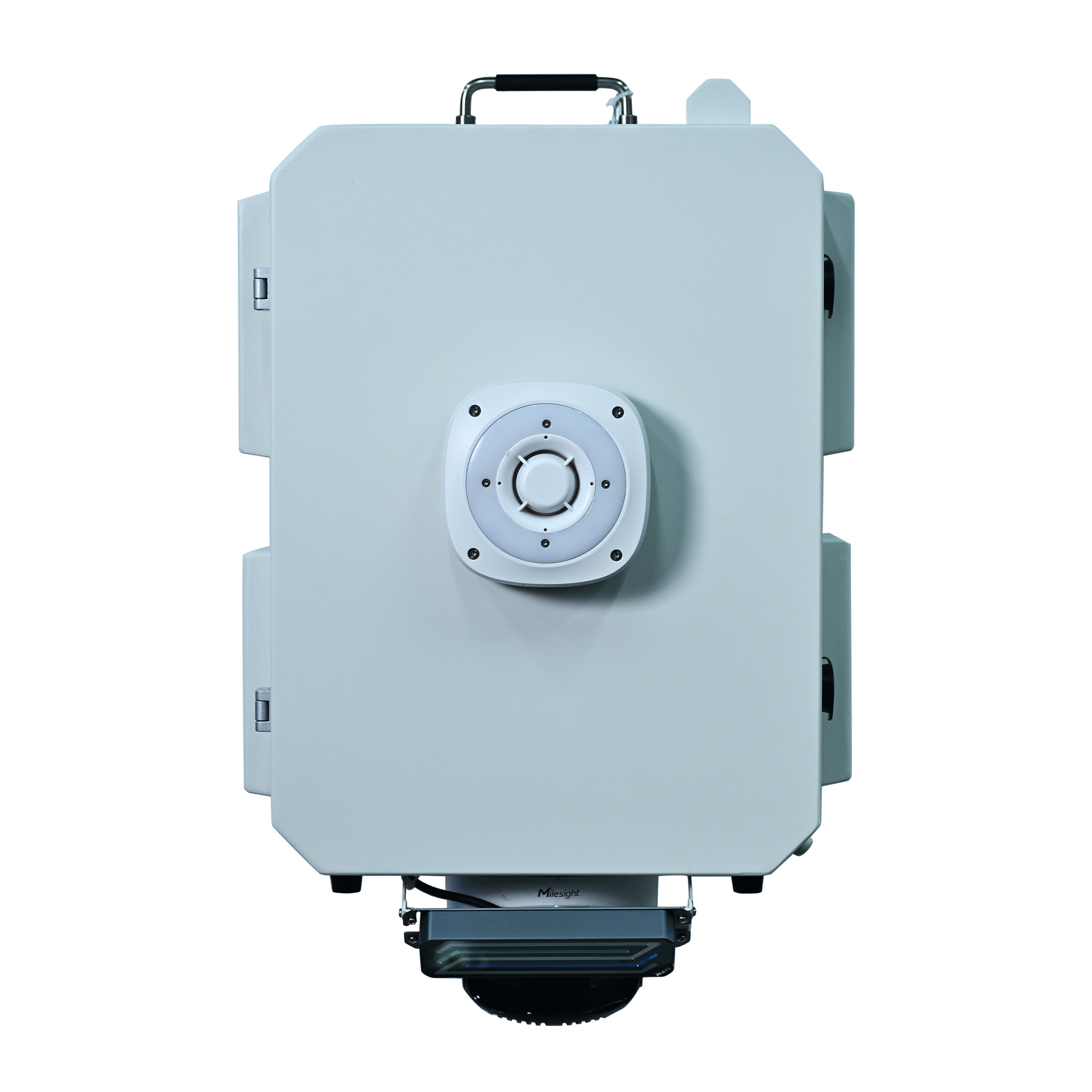

Outdoor AC Power & Edge Security Integration Cabinet (DD4 BOX)

The UPS Surveillance Enclosure (DD4 BOX) is a professional outdoor power and security integration cabinet designed for surveillance systems requiring stable power supply, battery backup, and edge device installation.

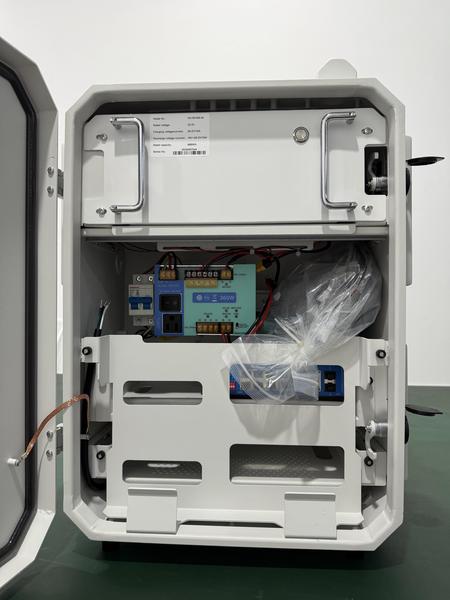

It integrates UPS power management, battery storage, NVR hosting,
and AI deterrence system support into a single compact enclosure,
significantly simplifying outdoor deployment for modern
security infrastructure.

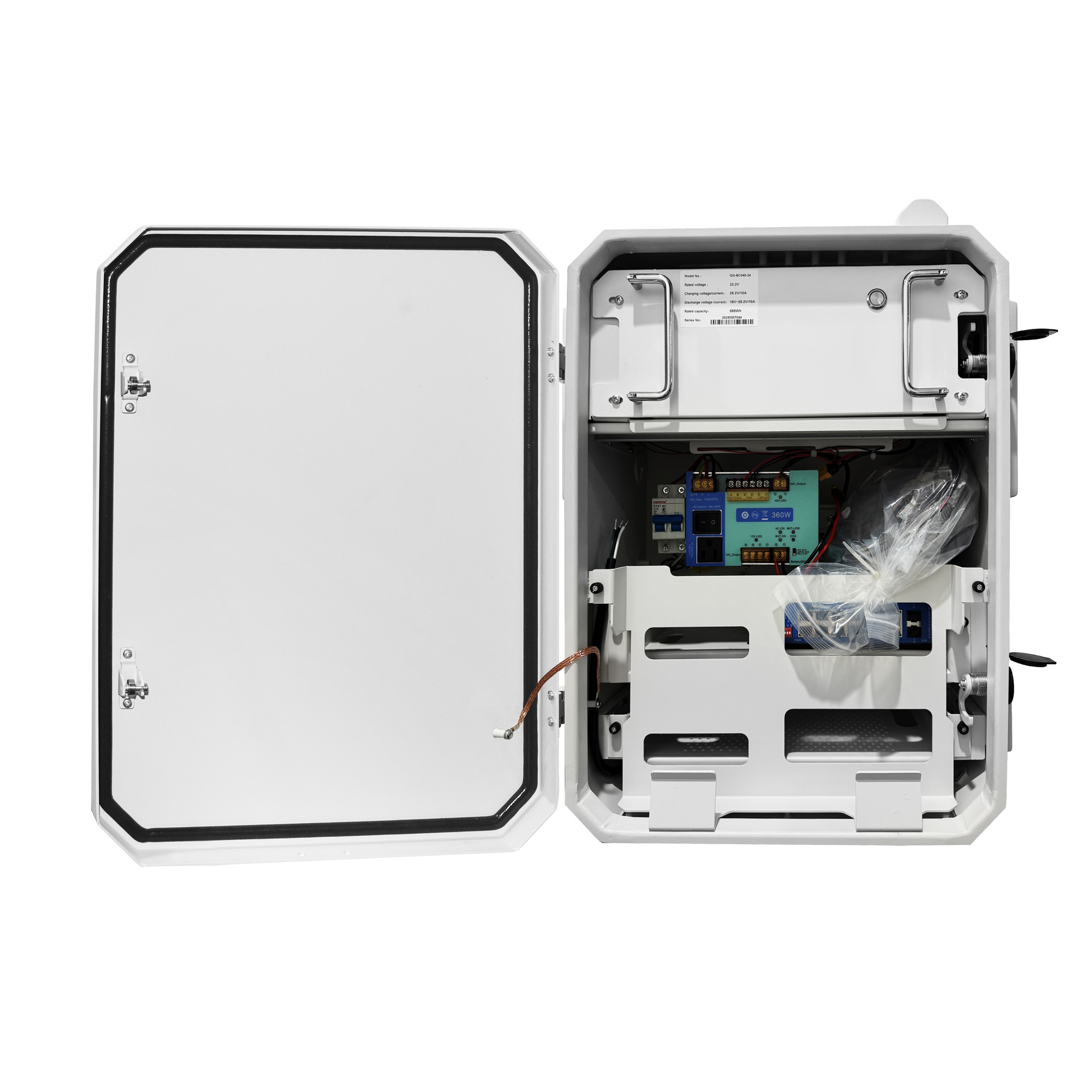

360W PCM
Enclosure

AC Input

110-277V MAX:1.5KW

DC48V Output

3A(MAX 150W)

DC12V Output

5A(MAX 60W)

Battery Charging Output

DC24V (MAX150W)

External Fan Power Output

DC12V/1A, 2 Ports

External Led Power Output

DC12V/1A, 1 Port

UPS Signal Output

AC Power Supply is Normally Open,

Battery Powered Normally Closed.

Enclosure Material

Aviation Aluminum Alloy

Dimension

L:110 W:140  H:100(MM)

Product Weight

1.2KG

Working Temp.

-25°to 60°

Installation

DIN Rail and Wall Mount

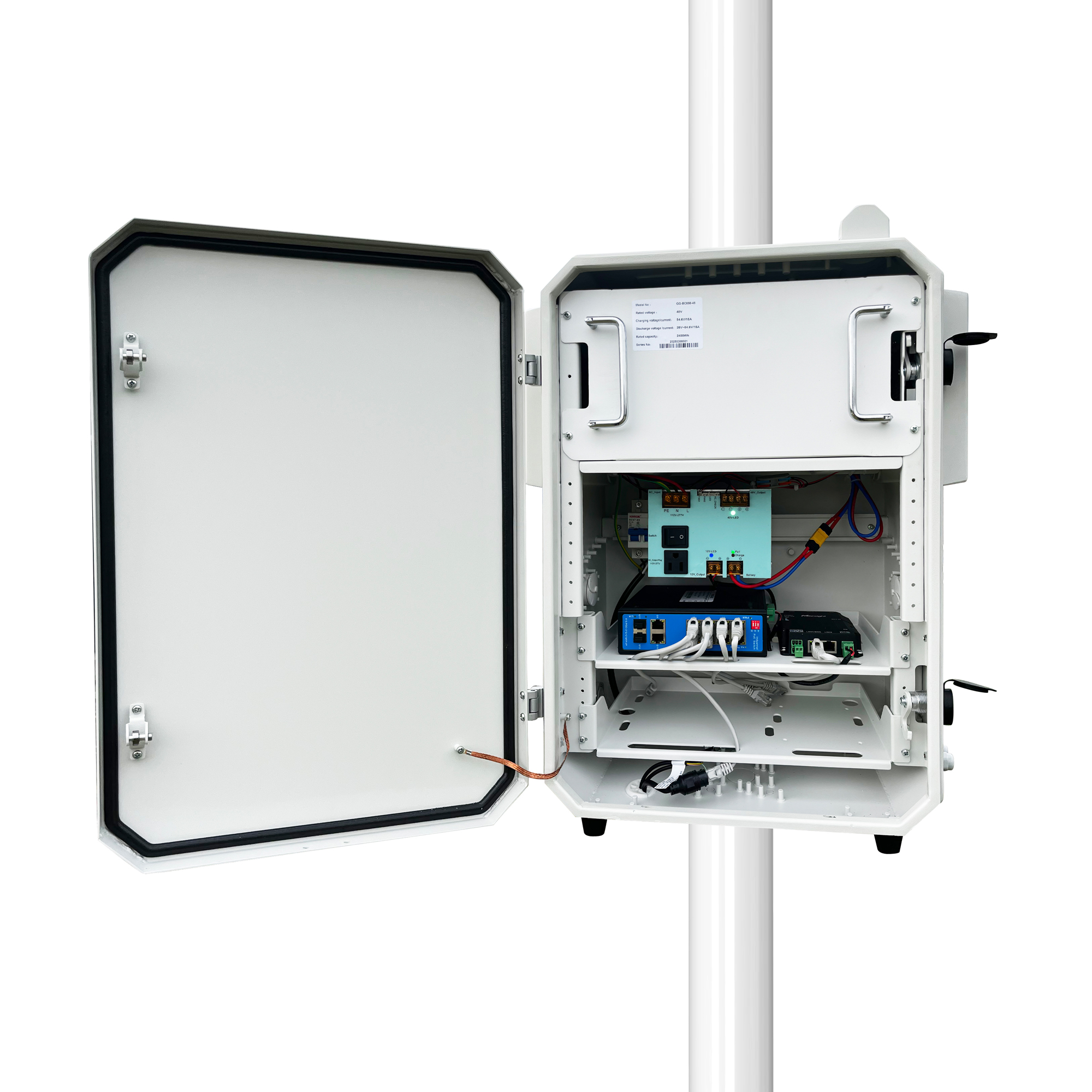

PoE Switch

8CH Industrial,AT30W for Each Port

Backup Battery

24V/40Ah with Heater, Ternary Lithium

When AC OFF, Battery will Discharge to Supply DC48V&DC12V Outputs

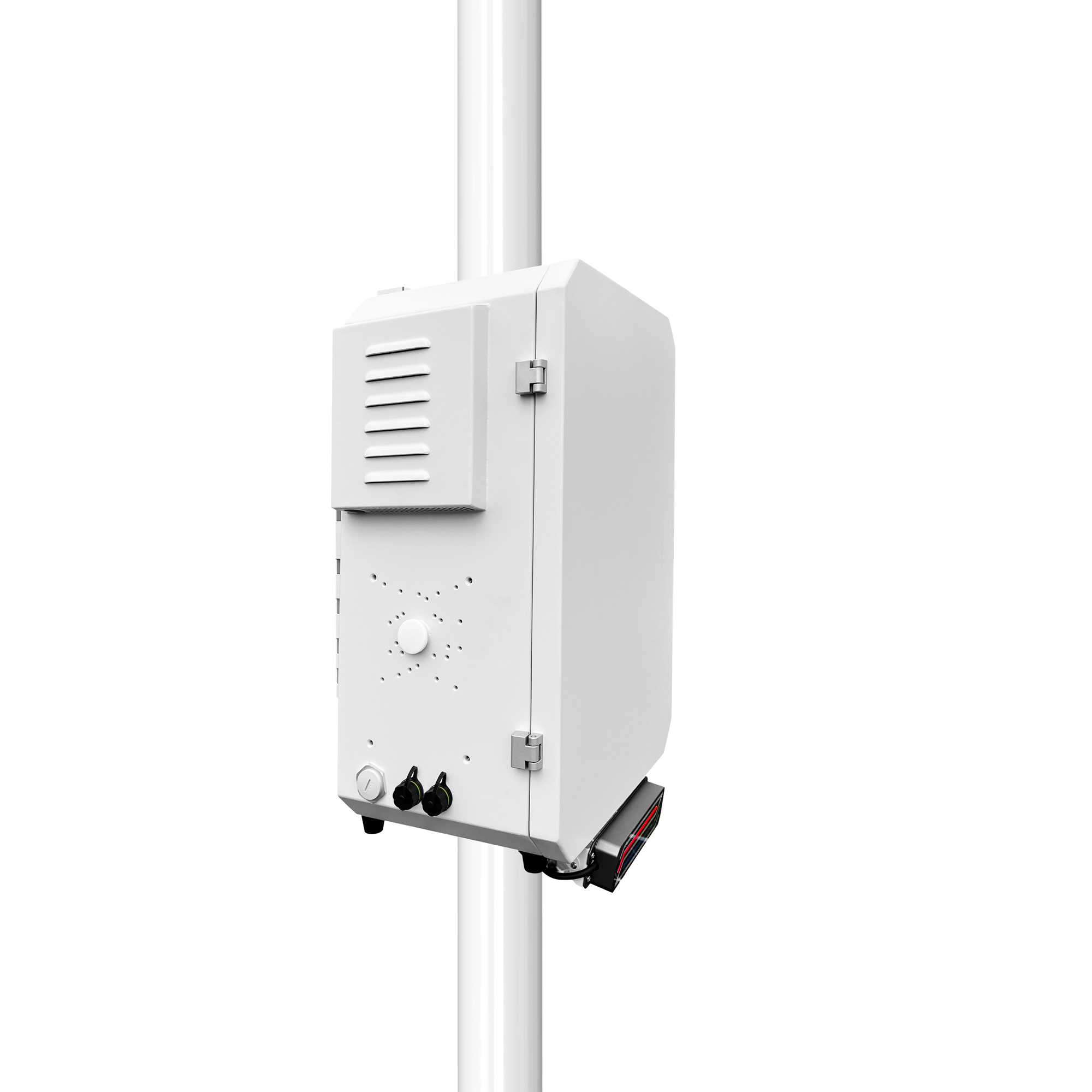

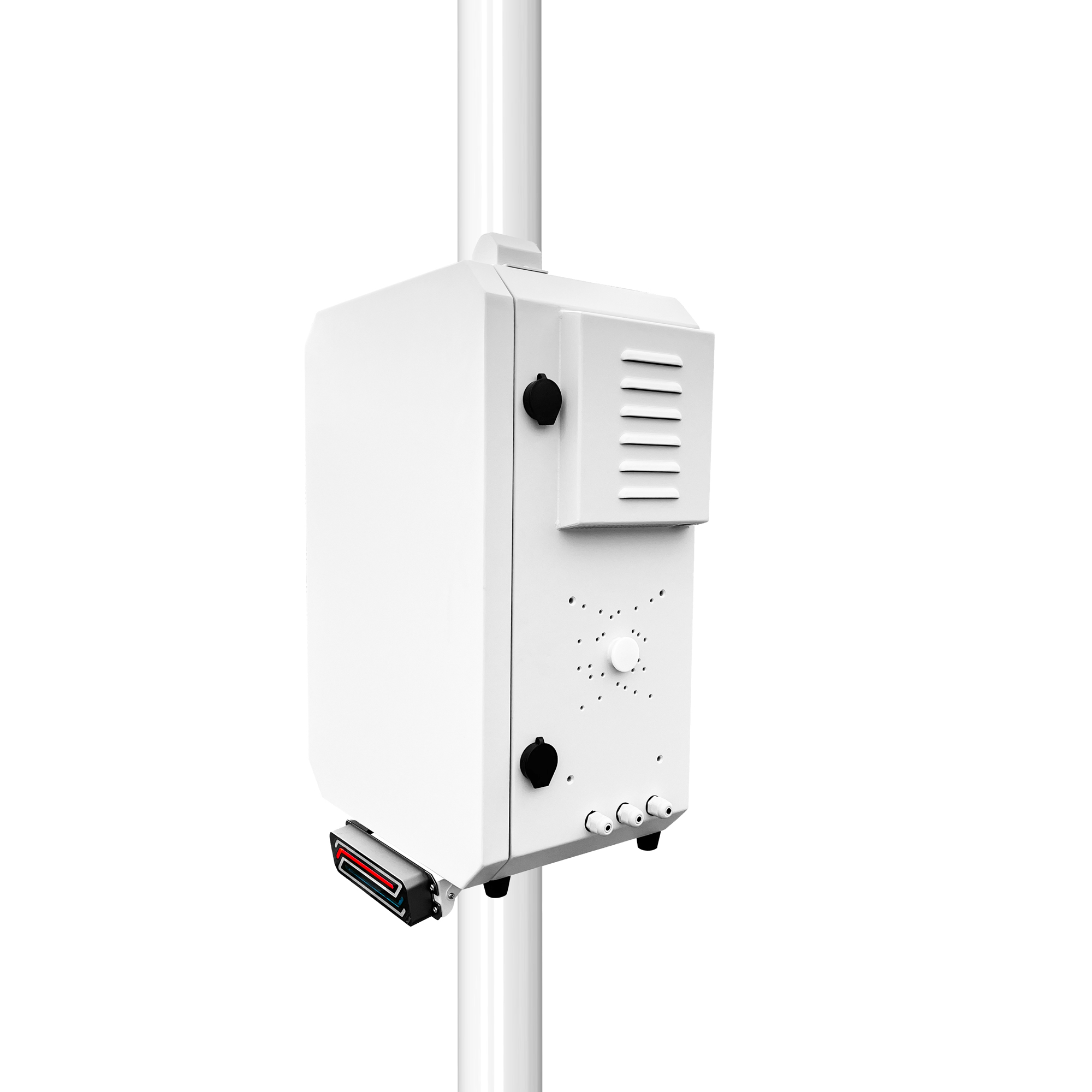

Cooling Fans

2PCs, UL Listed DC12V Powered from 360W PCM

Air Breaker

Yes

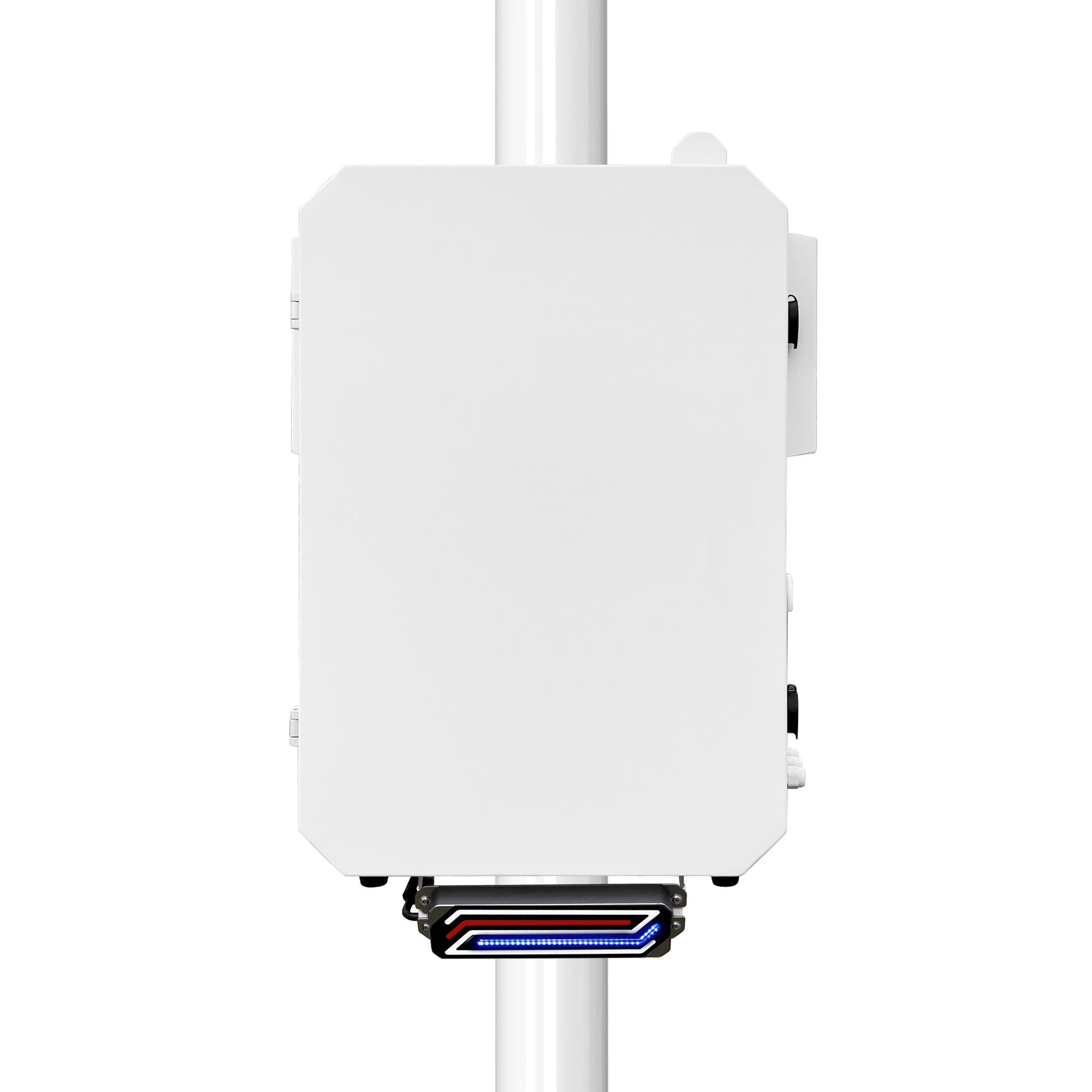

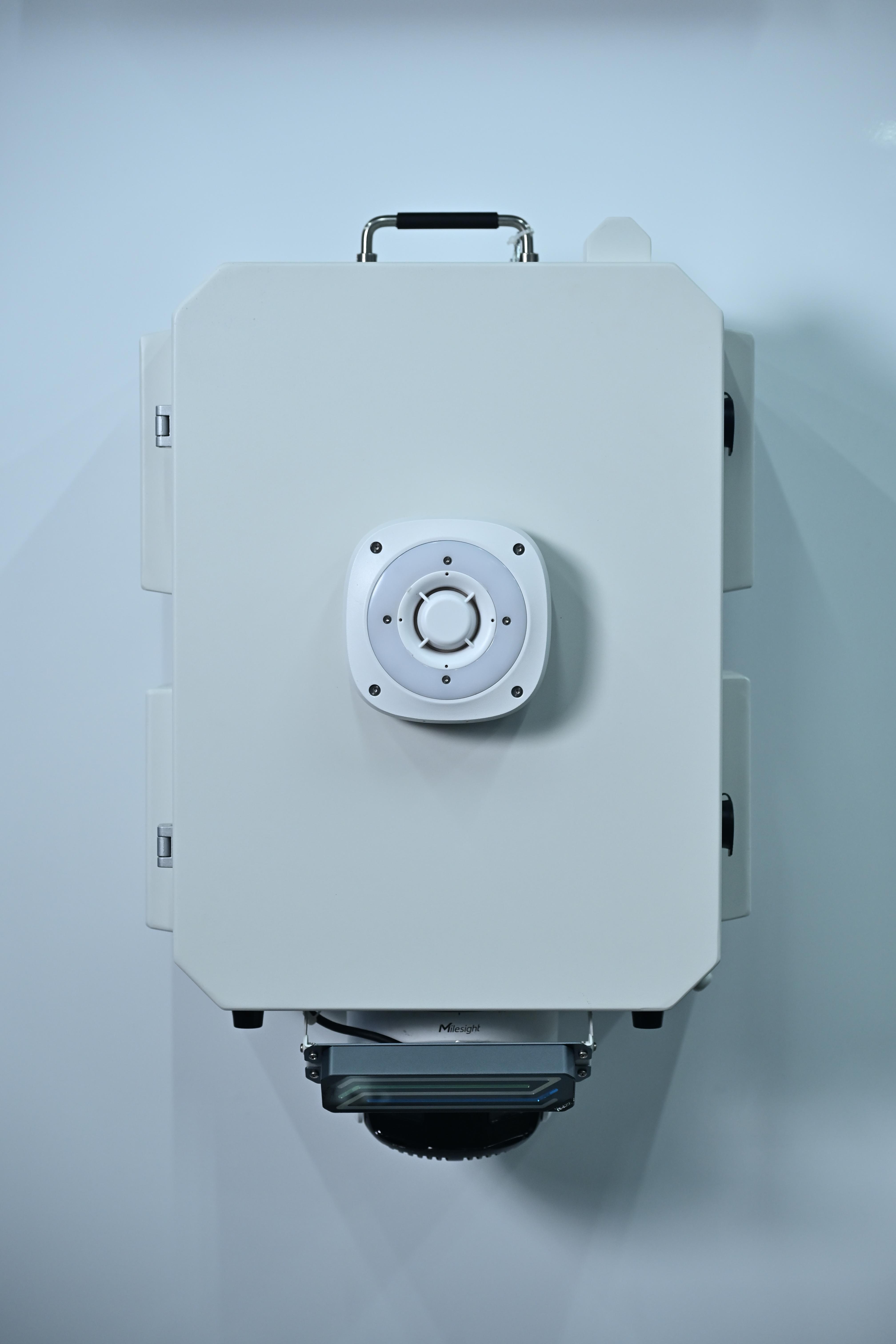

Deterrence Light

Default with 1PCs Sound AI PoE Light Siren


Material

Aluminum and Steel Combined

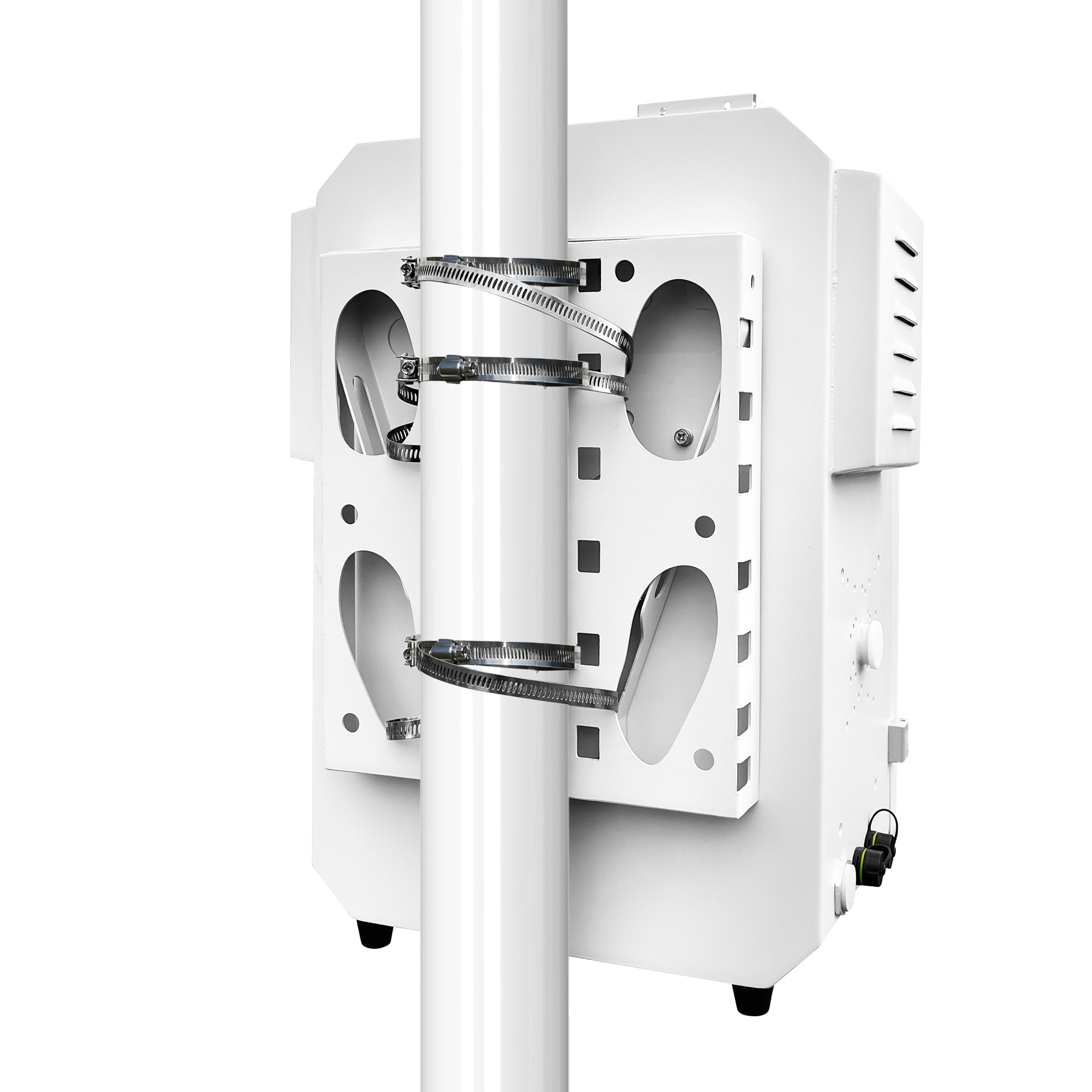

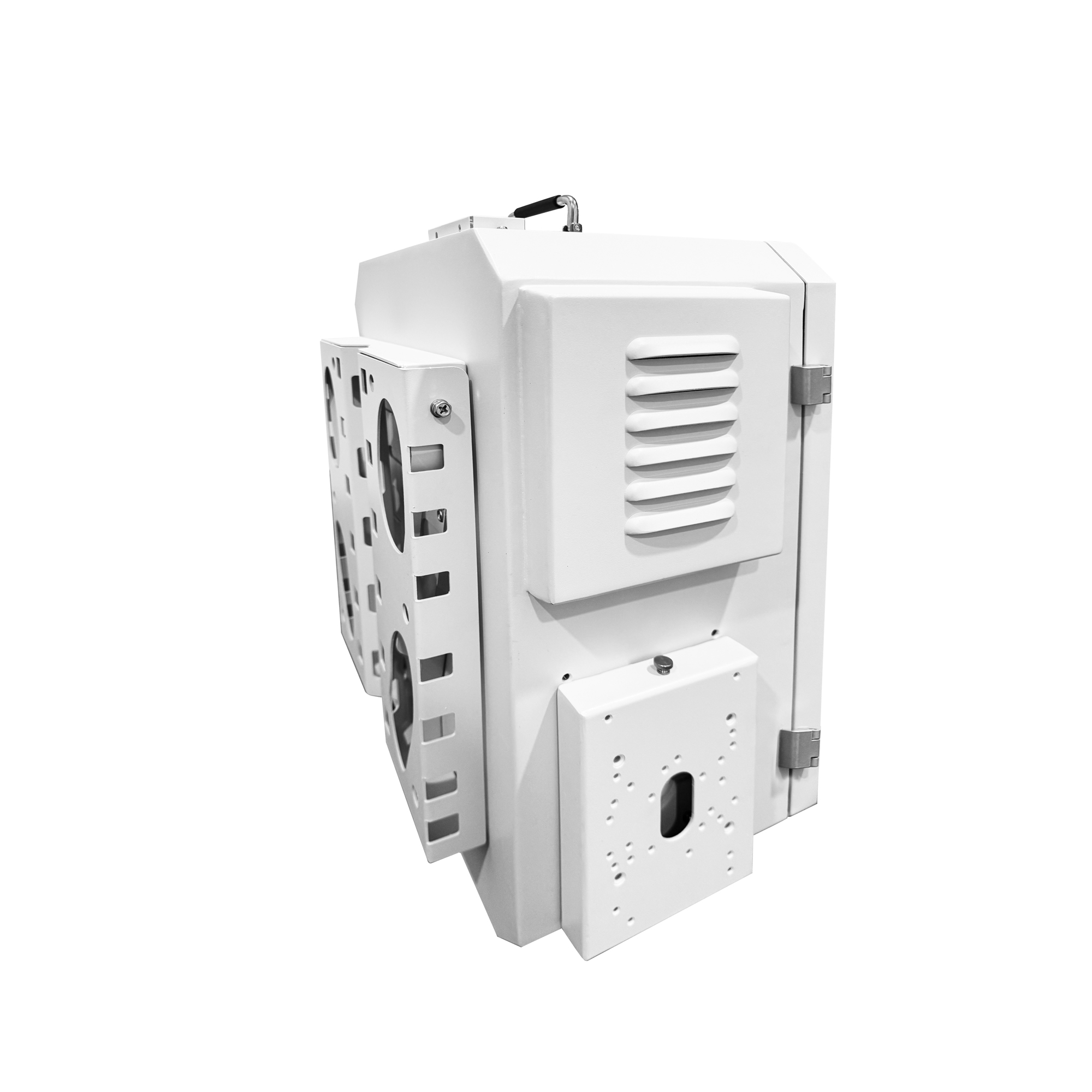

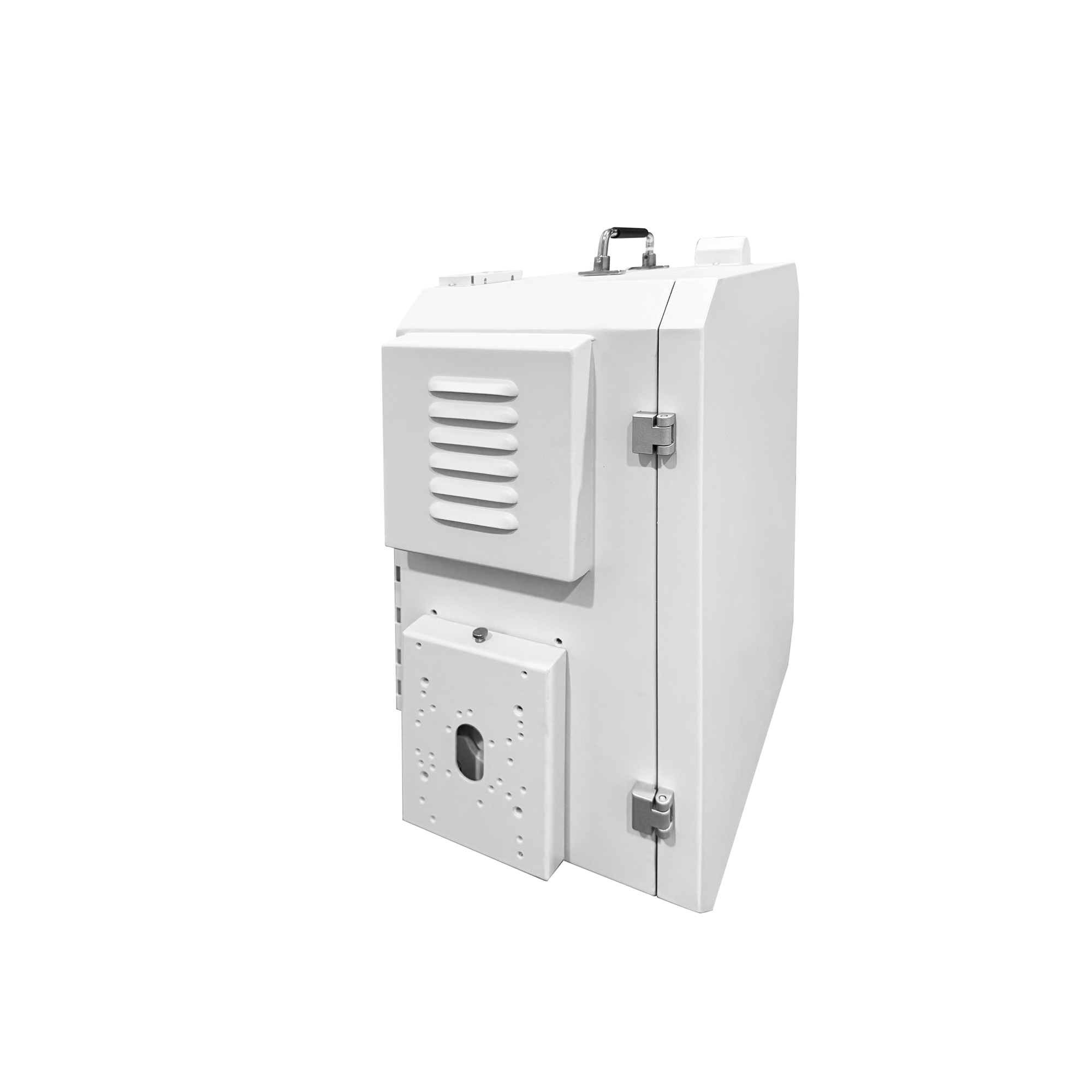

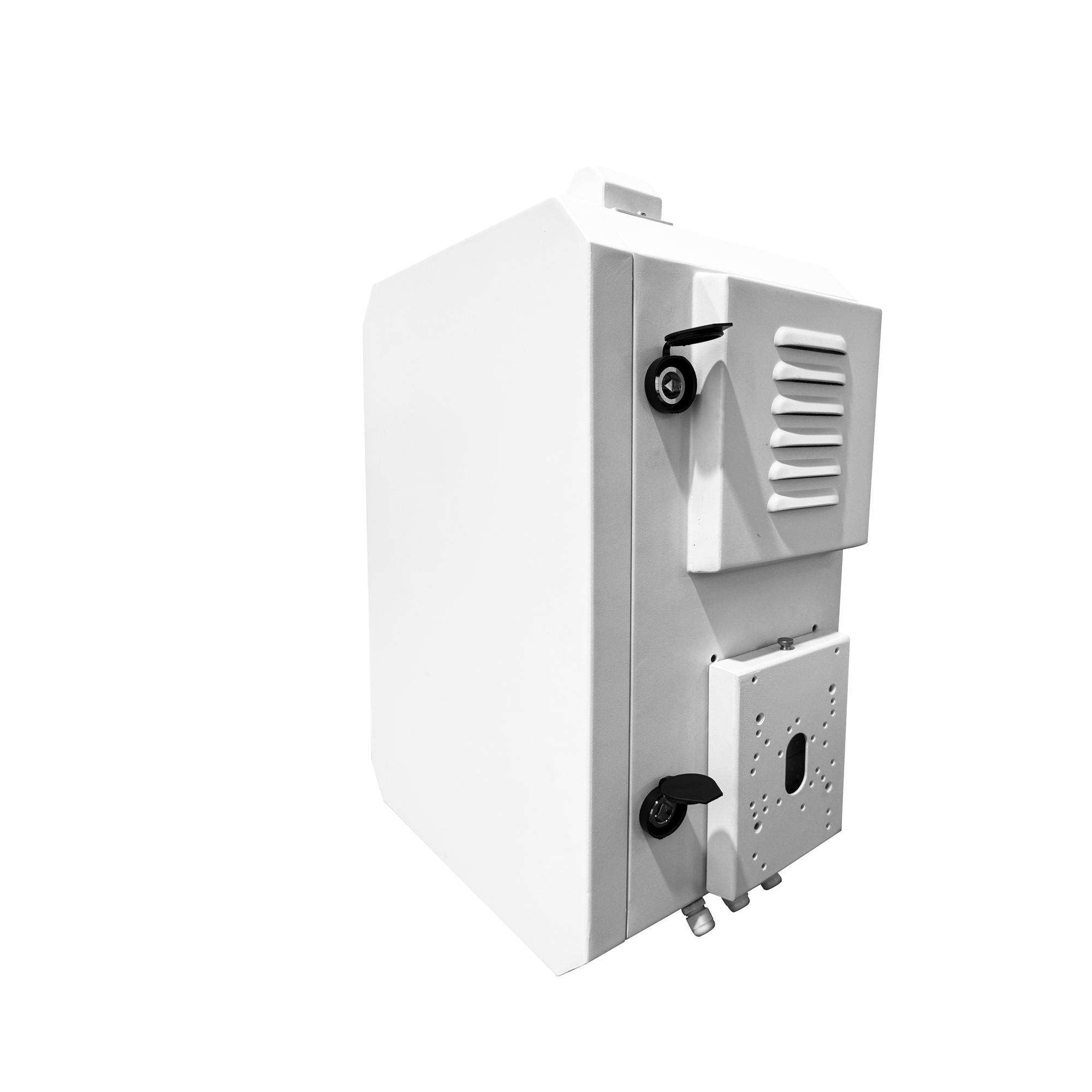

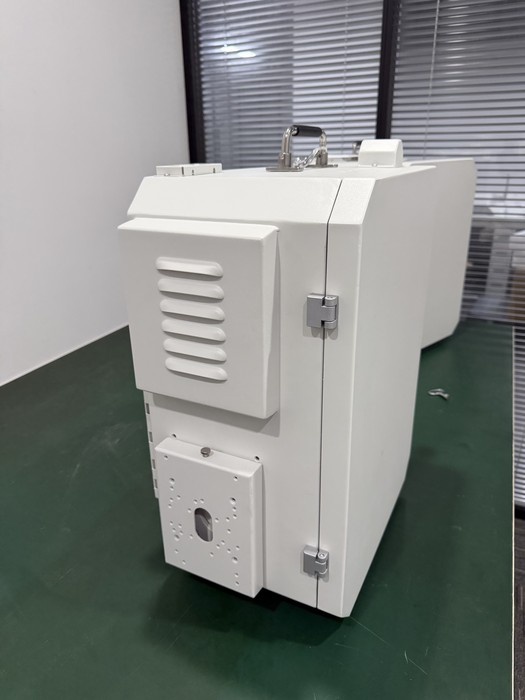

Mount

Pole&Wall(9-25CM Diameter Pole is Perfect)

Dimension

474Wx530Hx302.5D MM(Including Mount)

Gross Weight

27KG(with 24V/40Ah Battery Included), 18KG without Battery

Package Box Size

69x38x54CM

Customization Services
GAGO provides customization including:
✔ Sensor module selection
✔ Firmware customization
✔ Protocol integration
✔ VMS compatibility development
✔ Voice message customization
✔ Housing customization
✔ Branding support

Warranty & Technical Support

✔  2-Year Limited Warranty                                              ✔  Engineering support
✔  Integration assistance                                                 ✔  Product documentation
✔  Remote troubleshooting                                              ✔  Long-term technical support
